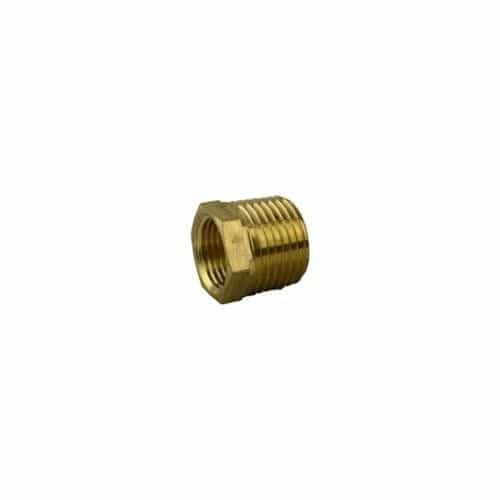

28-107L Brass Hex Bushing - 1/2 MNPT x 3/8 FNPT
Brand:
Mfr. Model #:
28-107L
KR Part #:
BFA110-86
Weight:
0.05 lbs
This is a brass pipe fitting that allows for easy reduction in pipe sizes in a fluid line. Reduce from 1/2 inch down to 3/8 inch with this hex bushing. This part tolerates high operating pressure and a vast temperature range, ideal specs for use in car wash and wash down environments.
Prop 65
Technical Specifications
Max PSI: 1200
Min Temperature: -65 degrees F
Max Temperature: 250 degrees F
Product Description
Brass Reducer Bushing, 1/2" MNPT to 3/8" FNPT
Threaded hex bushings allow you to easily step down or reduce from one pipe size to another, without taking up too much space in a system. The 28-107L is a light pattern fitting which is interchangeable with other full pattern fittings, but with a smaller hex and shorter length to take up less space in your system. This threaded brass bushing has fair vibration resistance, and is made for use in hydraulic systems, refrigeration systems, fuel and gas hookups, and more. Use with brass, bronze, copper, steel, aluminum, and iron pipe.
Specifications:
- 1/2" male NPT x 3/8" female NPT
- Max PSI: 1200
- Temperature Range: -65°F to +250°F
- Hex: 0.87
- Material: brass
- Length: 0.94"
WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm (For more information go to www.p65warnings.ca.gov).
