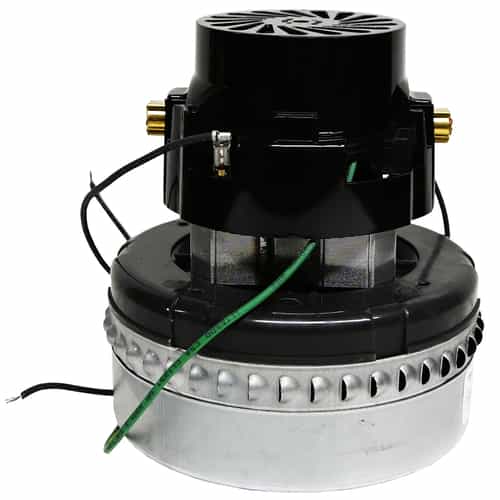

2 Stage 120V Vacuum Motor

The 119414-00 from Lamb Ametek is a high-quality, safe motor for commercial car wash vacuums, sprayer/foggers, utility vacuums, and central vacuuming units. Using an an 8-amp current and two blower stages, the 120V model produces high-end performance and will run smoothly over the long-term. Average lifespan measures 500 hours. The peripheral discharge vacuum AC motor has a design where air flows into the bottom of the motor and releases through vents in the motor.

A number of parts to know regarding the motor include a steel skeleton frame, dual ball bearings, a two-stage blower, and a lug motor mounting type. The motor will provide the type of availability you need, as each item used in manufacturing is tested and durable. Overall, the 2-stage motor is a popular order for folks who want to add a durable, high-performing vacuum motor to their shopping cart.

Vacuum Motor Description and Specifications:

• Black motor housing
• 2-stage blower
• 120 volt at 8.0 amp
• 94.0 cfm at 2-inch orifice
• Dual ball bearings
• 1.6 horsepower
• Speeds: 1
• 50/60 Hz
• Peripheral bypass discharge
• Operating Temp: 32°F - 104°F
• 5.7" fan diameter
• Steel skeleton frame
• UL/CSA Recognized
• Motor mounting type: lug
• Maximum air watts: 274
• Overall height: 6 5/16"
• Average life: 500 hours
• SKU: VAL9414
