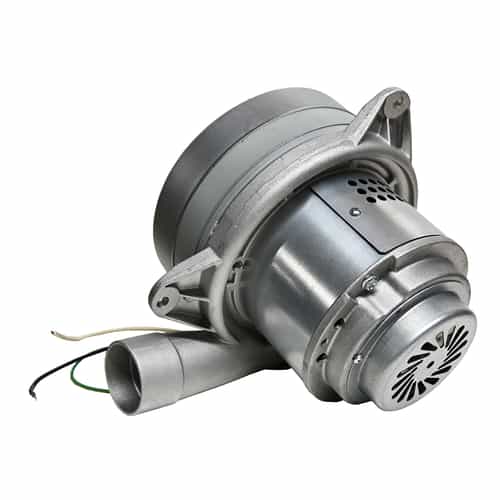

Lamb Ametek 116119-00 Tangential Bypass 3 Stage Vacuum Motor - 120 Volt, 7.2 Inch, 17900 RPM
Brand:
Mfr. Model #:
116119-00
KR Part #:
VAL6119
Weight:
9.44 lbs
A three-stage vacuum motor from Ametek. It achieves a maximum speed of 17,900 RPM and has an air flow of 94.3 CFM to deliver powerful suction for car wash vacuums. The motor is compatible with 120 VAC electrical connections. Use this motor to replace a dead one in your vacuum or one that is malfunctioning.
Technical Specifications
RPM: 17900
Voltage AC: 120
Amps: 12.6
Product Description
3-Stage Vacuum Motor
Got a dead 3-stage vacuum motor? This replacement will get you back up and running in no time. Lamb Ametek 116119-00 is a 3-stage vacuum motor that delivers exceptional performance in car wash applications. It is engineered with a bypass design and a tangential discharge. Replaceable carbon brushes make it easy to maintain and extend the motor's longevity. It has a maximum rated speed of 17,900 RPM. This 3-stage motor is compatible with 120 VAC electrical connections.
Product Details and Specifications:
- Ametek Product Number: 33415-5
- KR Product Number: 116119-00
- Motor Type: Bypass
- Discharge: Tangential
- Bearings: Double Ball Bearing
- Brush Material: Carbon
- Blower Stages: 3
- Sealed Vacuum: 135 inches
- Maximum Air Watts: 438
- Maximum Air Flow: 94.3 CFM
- Maximum Amps: 12.6
- Motor Speed: 17,900 RPM
- Voltage: 120 VAC
- Size: 7.2"
- Replacement Motor Brush: 33415-5
